In recent times I had a small issue with VMware vFabric tc Server which is included in SpringSource Tool Suite. When i was deploying my Spring application and after a long time i have this error :


"Server VMware vFabric tc Server Developer Edition v2.6 was unable to start within 120 seconds. If the server requires more time, try increasing the timeout in the server editor."

I would like to show you a professional CV in LaTeX of course ;) Below I put a screenshot of it.

CV in LaTeX Page 1/2

CV in LaTeX Page 2/2

I speak Polish, so I wondering why not put some helpful information related with polish fonts in LaTeX. At the beginning I have to say that is very simple to do ;)

If you use Windows put :

\usepackage{polski}
\usepackage[cp1250]{inputenc}

\usepackage{polski}
\usepackage[latin2]{inputenc}

\usepackage{polski}
\usepackage[macce]{inputenc}

A lot of open and neutral API (Application Programming Interface) have been created in recently years which were designed to facilitate access to the functionality of telecommunications networks.

Organizations 3rd Generation Partnership Project (3GPP) and European Telecommunications Standards Institute (ETSI) started joint work on assumptions of new service architecture called Open Service Architecture (OSA). Also Sun Microsystems designed specification of their own interface for telecommunication sector called Java APIs for Integrated Networks (JAIN).

Finally, organizations Parlay Group and ETSI with 3GPP focused joint efforts on designing unified interface Parlay/OSA for telecommunication sector which support concept of developing new service platform for telecoms.

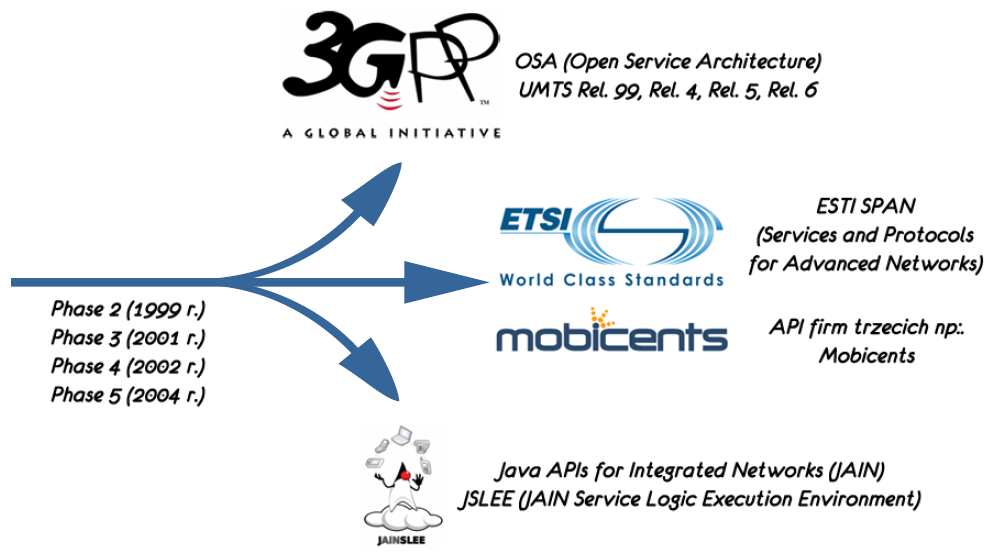

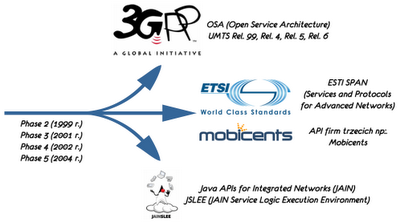

Evolution of Application Programming Interfaces in Telecommunications

It all started with a process called convergence, which was initiated in the early 90' mainly by technical progress, when telecoms decided to implement in their internal systems intelligent platforms, which allowed them using it to provide integrated and innovative services. Highly simplified model is presented on picture below. Through this process was created a new 'technology branch' called Information and Communication Technologies (ICT).

Due to this occurence were created many solutions which connect (mashup) internet technologies like the Internet, e-mails, digital maps e.g. with functionalities of mobile networks like voice and text services to finally get new products like SMS Gateway, protocols to transmission videos Video over IP (VIP) and sound Voice over IP (VoIP), multiline telephone systems PBX, protocol WAP, digital TV (DVH-B) and many many more. Also this process had a great impact on the assumptions of Telco 2.0.

Convergence

In result of synergy of telecommunication and IT sector occurred some new directions of development in future :

• Internet will become a new medium for transport of phone calls etc.
• Mobile networks gain hegemony in relation to fixed networks
• Band telecommunications networks will be dominated mainly by the movement ICT

Thanks to convergence, telecoms changed conception of creation services from strictly related with telecommunication to tools and solutions derived from IT sector.

Technologies in Telecommunications

Next post : New Application Programming Interfaces (API) in Telecommunications

(Telco 2.0 vol.3.)

Reference :
[1] Technologies of the future in telecommunications [PL]
[2] The development of telecommunications and mail in the information society [PL]

On my blog I would also write something about I am currently working on in MSc thesis. Surely I am not able to put all relevant information in one post, so you must be patient and just hold your breath ;)


The main topic of upcoming series of posts will be the explanation of mysterious acronym : Telco 2.0.

At the beginning, I will write a bit about historical background. What happened in the past in global economy and world of technology. How changed conception of the operation of telecoms. A few words about Web 2.0 and marketing concept "Long Tail".

In another post I will put some information about economic and law environment - legislative action in telecommunications sector, market challenges and finally implemented business model corresponding to those circumstences.

After this I will write about right service platform Telco 2.0 and how changed interfaces used by telecoms to nowadays and who made this change.

Some information about technical side of this service platform based on some examples.

Finally, I will place some prediction about how telecommunication market will change in the future using report IBM Telco 2015.



Reference:
[1] Orange Labs Telco 2.0 University
[2] Telco 2.0 Orange Blog
[3] STL Partners Telco 2.0 Initiative
[4] IBM Telco 2015 Five telling years, four future scenarios

Can't locate utils.pm in @INC (@INC contains: /usr/local/nagios/libexec /opt/nagios/perl/lib /usr/lib/perl5/5.10.0/x86_64-linux-thread-multi /usr/lib/perl5/5.10.0 /usr/lib/perl5/site_perl/5.10.0/x86_64-linux-thread-multi /usr/lib/perl5/site_perl/5.10.0 /usr/lib/perl5/vendor_perl/5.10.0/x86_64-linux-thread-multi /usr/lib/perl5/vendor_perl/5.10.0 /usr/lib/perl5/vendor_perl .) at ./HSRPCheck.pl line 22.

and whala! Now it works ;)

PS. Also your Nagios can be installed in other directory, so just execute this one command in terminal :

locate /nagios/plugins

and if you get full path to directory which contains plugins just paste it to your script. (use lib 'Received Path')

Of course i will post my script related with this issue in the separate post ;-)

This time I would like to share with code which will create below nice quotes in LaTeX of course ;)

LaTeX fancy quotes

\makeatletter
\newif\if@right
\def\shadequote{\@righttrue\shadequote@i}
\def\shadequote@i{\begin{snugshade}\begin{quote}\openquote}
\def\endshadequote{%
  \if@right\hfill\fi\closequote\end{quote}\end{snugshade}}
\@namedef{shadequote*}{\@rightfalse\shadequote@i}
\@namedef{endshadequote*}{\endshadequote}
\makeatother

\begin{shadequote}
\textit{Hello everybody!}
\par\emph{Tom Alexander - dyrektor generalny}
\end{shadequote}

I'm very fascinated about document markup language and preparation system for the TeX typesetting program called LaTeX. I wrote using it my BSc thesis, curriculum vitae, cover letters, laboratory reports and many many more :-). Furthermore I am currently working on my MSc thesis of course writing it in LaTeX.


It has a lot of advantages - it is absolutely free, cross-platform, open-source (LPPL licence), automation generation components such as table of contents, bibliography, index etc., very good support for mathematical formulas and from community and obviously it can create documents look very nice and professionally in many widely known formats e.g. PDF, PostScript, HTML, DVI etc.


So, I am gona to show some piece of code which helps you create wonderful listing of your code in LaTeX ;) which is widely used for instance in books :

LaTeX code listing

\usepackage{listings}
\usepackage{courier}
\lstset{
  basicstyle=\footnotesize\ttfamily, % Standardschrift
  %numbers=left, % Ort der Zeilennummern
  numberstyle=\tiny, % Stil der Zeilennummern
  %stepnumber=2, % Abstand zwischen den Zeilennummern
  numbersep=5pt, % Abstand der Nummern zum Text
  tabsize=2, % Groesse von Tabs
  extendedchars=true, %
  breaklines=true, % Zeilen werden Umgebrochen
  keywordstyle=\color{red},
    frame=b,
  % keywordstyle=[1]\textbf, % Stil der Keywords
  % keywordstyle=[2]\textbf, %
  % keywordstyle=[3]\textbf, %
  % keywordstyle=[4]\textbf, \sqrt{\sqrt{}} %
  stringstyle=\color{white}\ttfamily, % Farbe der String
  showspaces=false, % Leerzeichen anzeigen ?
  showtabs=false, % Tabs anzeigen ?
  xleftmargin=17pt,
  framexleftmargin=17pt,
  framexrightmargin=5pt,
  framexbottommargin=4pt,
  %backgroundcolor=\color{lightgray},
  showstringspaces=false % Leerzeichen in Strings anzeigen ?
}

\lstloadlanguages{% Check Dokumentation for further languages ...
  %[Visual]Basic
  %Pascal
  %C
  %C++
  %XML
  %HTML
  Java
}

  %\DeclareCaptionFont{blue}{\color{blue}}
  %\captionsetup[lstlisting]{singlelinecheck=false, \
    labelfont={blue}, textfont={blue}}
\usepackage{caption}
\DeclareCaptionFont{white}{\color{white}}
\DeclareCaptionFormat{listing}{\colorbox[cmyk] \
  {0.43, 0.35, 0.35,0.01}{\parbox{\textwidth} \
   {\hspace{15pt}#1#2#3}}}
\captionsetup[lstlisting]{format=listing,labelfont=white, \
  textfont=white,singlelinecheck=false, margin=0pt, \
   font={bf,footnotesize}}

\lstinputlisting[label=samplecode,caption=Description]{code/foo.java}
